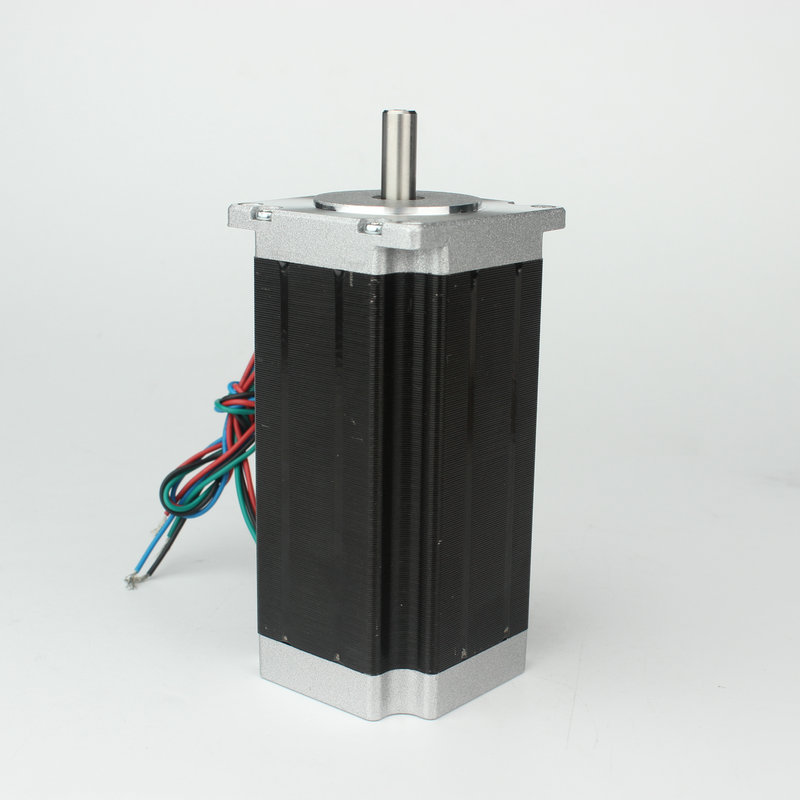

Nema23 Stepper Motor High Torque 3N.M 425oz.In For CNC Mill Lathe Router

  • 1
  • 2

Brand Name : Jkongmotor

Model Number : JK57HS112-3004

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$13.5~US$18

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Shaft : 8mm Round

Leads : 4

Current : 3A

Holding Torque : 3.0N.m

Step Angle : 1.8 degree

Motor Length : 112mm

Type : nema 23 stepper motor

Application : cnc machine

MOQ : 10pcs

Contact Now

Nema23 Hybrid Stepper Motor 30kg.cm 425oz.in CNC Mill Lathe Router

1.Electrical Specification of nema 23 stepper motor:

Motor Length: 112mm

Current/Phase : 3A

Resistance/Phase : 1.6Ω

Inductance/Phase : 7.5mH

Holding Torque : 3 N.m

# of Leads : 4

Detent Torque : 1200g.cm

Rotor Inertia : 800g.cm

Mass : 1.4KG

Matching Stepper Driver : JKD5056S


2.Genaral Specification of 57BYG stepper motor:

Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 75N (20mm from the flange)
Max. axial force 15N


3.Drawing of 57mm stepper motor
Nema23 Stepper Motor High Torque 3N.M 425oz.In For CNC Mill Lathe Router

Details of FL57STH115-3004A

Nema23 Stepper Motor High Torque 3N.M 425oz.In For CNC Mill Lathe Router

Nema23 Stepper Motor High Torque 3N.M 425oz.In For CNC Mill Lathe Router

4.Applications of nema 23 high torque stepping motor:

Use for

  • Industry of automation
  • Medical and health care equipment
  • 3d printer machines
  • Packing devices
  • Information Technology
  • Household appliance products
