3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor

Product Categories
CHANGZHOU JKONGMOTOR CO.,LTD
Contact Now

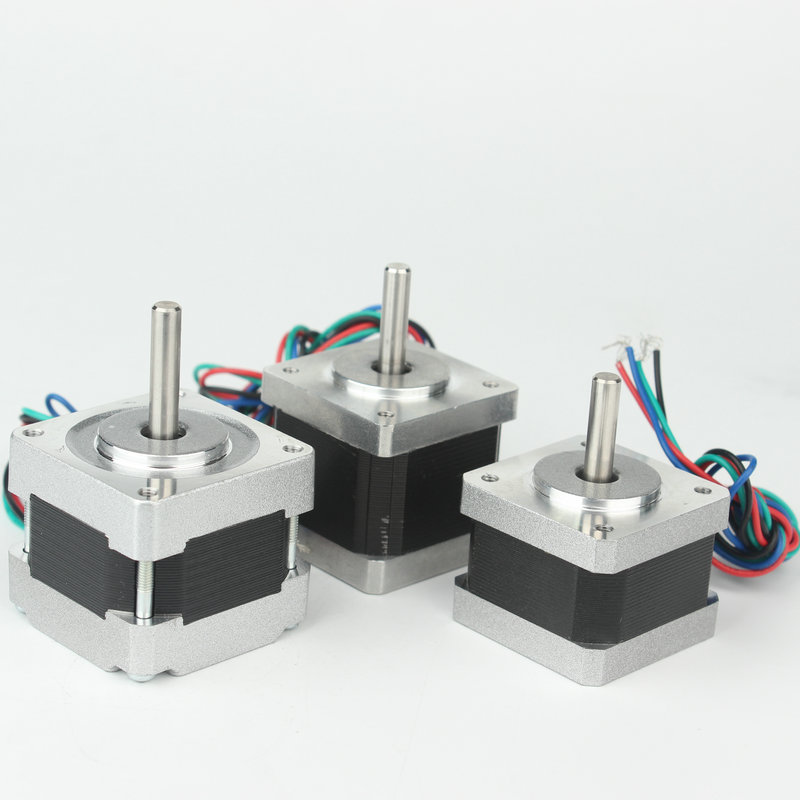

3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor

  • 1
  • 2

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Jkongmotor

Model Number : JK42HS48-1684-08AF

Certification : CE, ROHS,ISO9001

Price : US $5 - 8 / Pieces

MOQ : 3-10pcs

Packaging Details : with export carton . big quantity with pallet

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 30000 pcs/ month

Phase : 2

Type : Hybrid

Step Angle(degrees) : 1.8 Degree

Holding Torque : 0.5N.m

Current / Phase : 1.68A

Temperature Rise : 80°Cmax

Dielectric strength : 500VDC for 1 minute

Max axial force : 10N

MOQ : 10pcs

Contact Now

CNC Router Parts NEMA17 42HT 2phase Stepper Motor High Torque 5.0kg.cm 69oz.in With 5mm D-shaft

Product Description of 3d printer stepper motor nema 17:
Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1704 1.8 40 1.7 1.5 2.3 4.2 4 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35

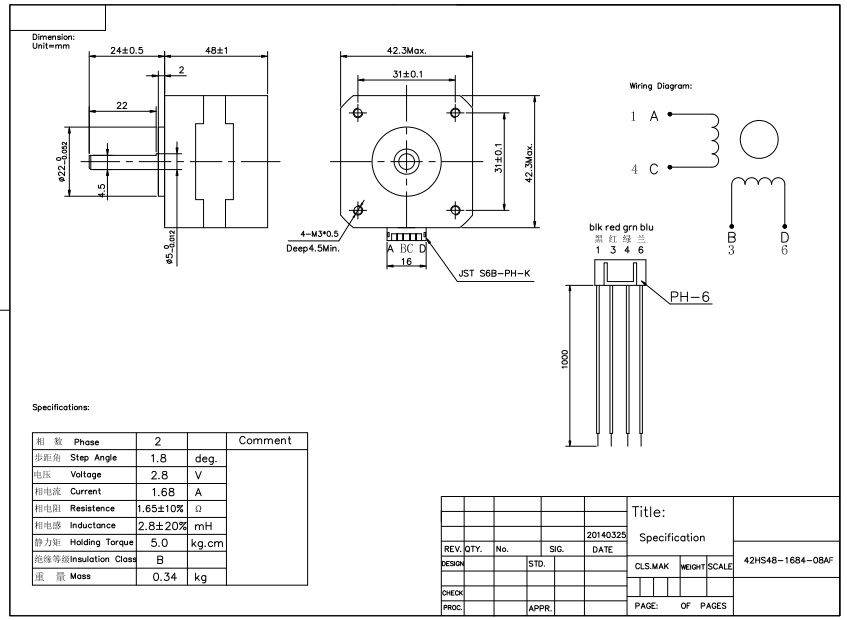

Drawing of cnc stepper motor:

3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor

3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor

3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor
