3phase 130mm Hybrid Stepper Motor Nema52 High Torque 25N.m - 50N .m 3472oz.in - 6944oz.in
The stepper motor is an electromagnetic device that converts digital pulses into mechanical shaft rotation. Advantages of step motors are low cost, high reliability, high torque at low speeds and a simple, rugged construction that operates in almost any environment. The main disadvantages in using a stepper motor is the resonance effect often exhibited at low speeds and decreasing torque with increasing speed.
Description:
130mm high torque stepping motor, 130mm 3 Phase stepper motor.
50N.m 3phase Stepper motor, high torque stepper motor with 130mm size.
45 N.m stepping motor,
Applications:
Used for robots stepper motor,
electronic automatic equipment stepping motor,
medical instrument stepping motor,
advertising instrument stepper motor,
lighting& audio equipment stepper motor,
printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
Genaral Specification:
| Item | Specifications |
| Step Angle | 1.2° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
Specifications:
| Model No. | Operating Voltage | Rated Current | Resistance | Inductance | Holding Torque | Noload Frequency | Starting Frequency | Weight | Length |
| | VDC | A | Ω | mH | N.m | No. | g.cm | kg | mm |
| JK130H3P173 | 80~325 | 5 | 0.68 | 9.2 | 25 | 20000 | 2600 | 13.3 | 173 |
| JK130H3P229 | 80~325 | 5 | 0.94 | 14.8 | 30 | 20000 | 2500 | 17.8 | 229 |
| JK130H3P257 | 80~325 | 3 | 1.71 | 23.6 | 40 | 18000 | 2500 | 20 | 257 |
| JK130H3P285 | 80~325 | 6 | 1.18 | 19.4 | 50 | 18000 | 2500 | 22.5 | 285 |

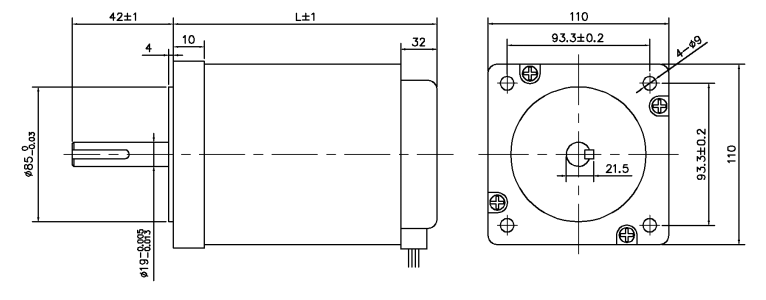

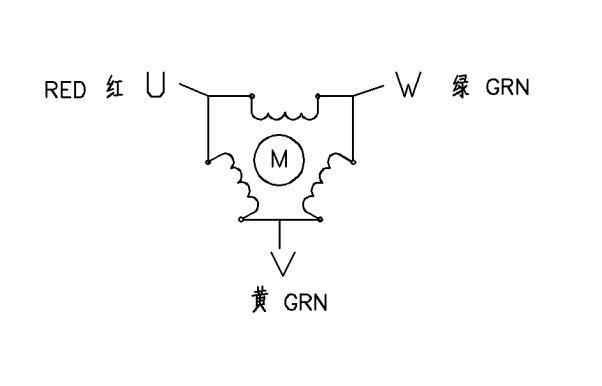

Wiring Diagram:
Stepper Motor Advantages
- Low cost for control achieved
- High torque at startup and low speeds
- Ruggedness
- Simplicity of construction
- Can operate in an open loop control system
- Low maintenance
- Less likely to stall or slip
- Will work in any environment
- Can be used in robotics in a wide scale.
- High reliability
- The rotation angle of the motor is proportional to the input pulse.
- The motor has full torque at standstill (if the windings are energized)
- Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
- Excellent response to starting/stopping/reversing.
- Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
- The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
- It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
- A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
