Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M 153oz.In For CNC Machine

Product Categories
CHANGZHOU JKONGMOTOR CO.,LTD
Contact Now

Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M 153oz.In For CNC Machine

  • 1
  • 2

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Jkongmotor

Model Number : JK57HS56-4204BFED-0.35M

Certification : CE, ROHS,ISO9001

Price : US $55 - 69 / Sets

MOQ : 3-10pcs

Packaging Details : with export carton . big quantity with pallet

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 30000 pcs/month

Phase : 2

Type : easy servo motor

Step Angle : 1.8 degree

Holding Torque : 1.1N.m

Current / Phase : 4.2A

Product name : closed loop stepper motor

Application : cnc router

Frame size : 57*57mm

Contact Now

Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M For CNC Machine

Genaral Specification of nema 23 closed loop stepper motor:

Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

haft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

75N (20mm from the flange)

Max. axial force

15N

Electrical Specification of nema23 easy servo motor:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

N.m

No.

g.cm

g.cm

Kg

JK57HS56-

4204 BFED-0.35M

1.8

56

4.2

0.4

1.2

1.1

4

350

280

0.98

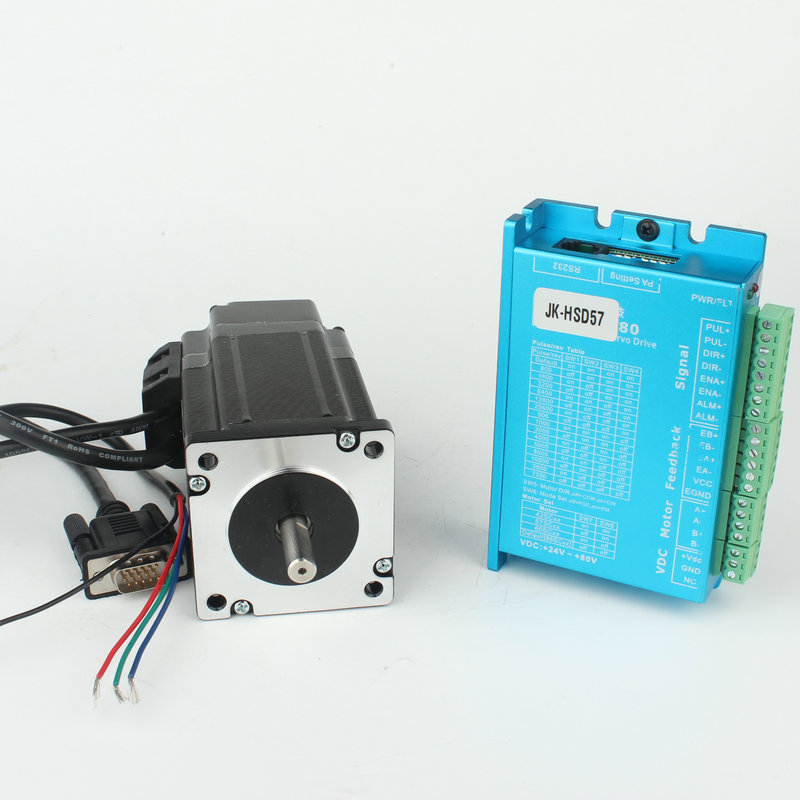

Details of nema 23 closed loop stepper motor systerm:

Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M 153oz.In For CNC Machine

Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M 153oz.In For CNC Machine

Note: We can also manufacture products according to customer's requirements.

Matched Drivers:2 Phase closed loop stepper motor system match driver Model: JK-HSD57

Parameter Min Typical Max Unit
Input Voltage (JK-HSD57) 20 36 48 50 VDC
Input Voltage (JK-HSD57C) 24 36 48 80 VDC
Input Voltage (SC8680C) 24VAC 60AC 80VAC 100VDC VVDC
Output Current 0.1 - 10(Peak) A
Pulse Input Frequency 0 - 200 kHz
Logic Signal Current 7 10 16 mA
Isolation Resistance 500 - - MΩ

Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M 153oz.In For CNC Machine

Dimensions:

Unit=mm

Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M 153oz.In For CNC Machine

Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M 153oz.In For CNC MachineClosed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M 153oz.In For CNC Machine
