Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial

Product Categories

CHANGZHOU JKONGMOTOR CO.,LTD

Contact Now

Name: Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 12NM 28A Current For Industrial
Brand: Jkongmotor
Price: 1 USD

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Jkongmotor

Model Number : JK57HS56-2804SV

Certification : CE, ROHS,ISO9001

Price : US $30 - 39 / Pieces

MOQ : 3-10pcs

Packaging Details : with export carton . big quantity with pallet

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 30000 pcs/month

Phase : 2

Type : Hybrid

Step Angle(degrees) : 1.8 Degree

Holding Torque : 1.2N.m

Current / Phase : 2.8A

Weight : 0.68kg

Motor length : 56mm

Leads(No.) : 4

Contact Now

Stepper Motor Worm Gear / Stepping Motor Nema23 1.2N.m With Gearbox Ratio From 1:5 to 1:100

Genaral Specification of worm gear stepper motor nema 23:

Deails of worm gearbox:

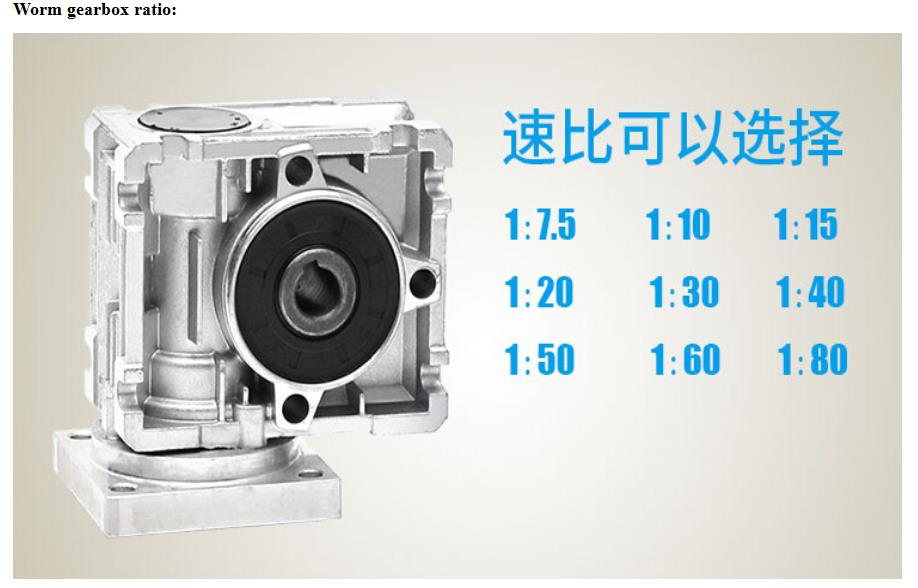

Worm gearbox ratio:

There are 7.5:1 10:1 15:1 20:1 30:1 40:1 50:1 60:1 80:1

The size of RV40 and RV50:

Electrical Specification of stepper motor with gearbox:

Wiring Diagram of nema23 stepper motor:

Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial

We can customized according to your special requirements.

The other gearbox in stepper motor:
