Nema34 2phase Stepping Motor With Brake Pad High Torque 3.4N.m - 13N.m
Genaral Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 820VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| | ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg |
| JK86HS68-5904BK6 | 1.8 | 67 | 5.9 | 0.28 | 1.7 | 3.4 | 4 | 0.8 | 1000 | 1.7 |
| JK86HS78-5504BK6 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
| JK86HS97-4504BK6 | 1.8 | 97 | 4.5 | 0.66 | 3 | 5.8 | 4 | 1.7 | 2100 | 3.0 |
| JK86HS100-6004BK6 | 1.8 | 100 | 6.0 | 0.36 | 2.8 | 7.0 | 4 | 1.9 | 2200 | 3.1 |
| JK86HS115-4204BK6 | 1.8 | 115 | 4.2 | 1.2 | 14 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
| JK86HS126-6004BK6 | 1.8 | 126 | 6.0 | 0.58 | 6.5 | 6.3 | 4 | 2.9 | 3200 | 4.5 |
| JK86HS155-6004BK6 | 1.8 | 155 | 6.0 | 0.68 | 9.0 | 13 | 4 | 3.6 | 4000 | 5.4 |

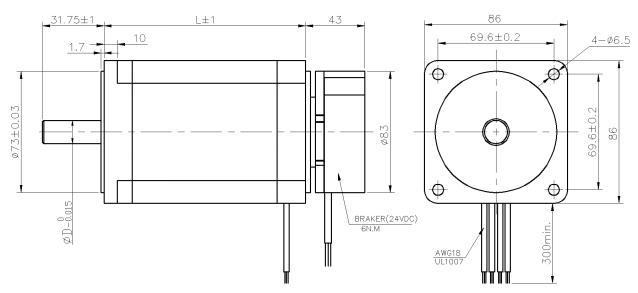

Dimensions: (Unit=mm)
