3000rpm 140W Nema 23 Bldc Motor Hybrid Type 1.8 Degree

Product Categories

CHANGZHOU JKONGMOTOR CO.,LTD

Contact Now

3000rpm 140W Nema 23 Bldc Motor Hybrid Type 1.8 Degree

Name: 3000rpm 140W Nema 23 Bldc Motor Hybrid Type 18 Degree
Brand: Jkongmotor
Price: 63 USD

Quality 3000rpm 140W Nema 23 Bldc Motor Hybrid Type 1.8 Degree wholesale

Brand Name : Jkongmotor

Model Number : IHSV57-30-14-36-01-BY

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$63~US$79/pcs

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Type : Closed loop Servo Motor

Phase : 3

Voltage : 36V

Current : 5.4A

Holding Torque : 12N.m

Power : 140W

Speed : 3000rpm

Shaft : D shaft

Inductance : 0.84±20%mH

Resistance : 0.78±10%Ω

Contact Now

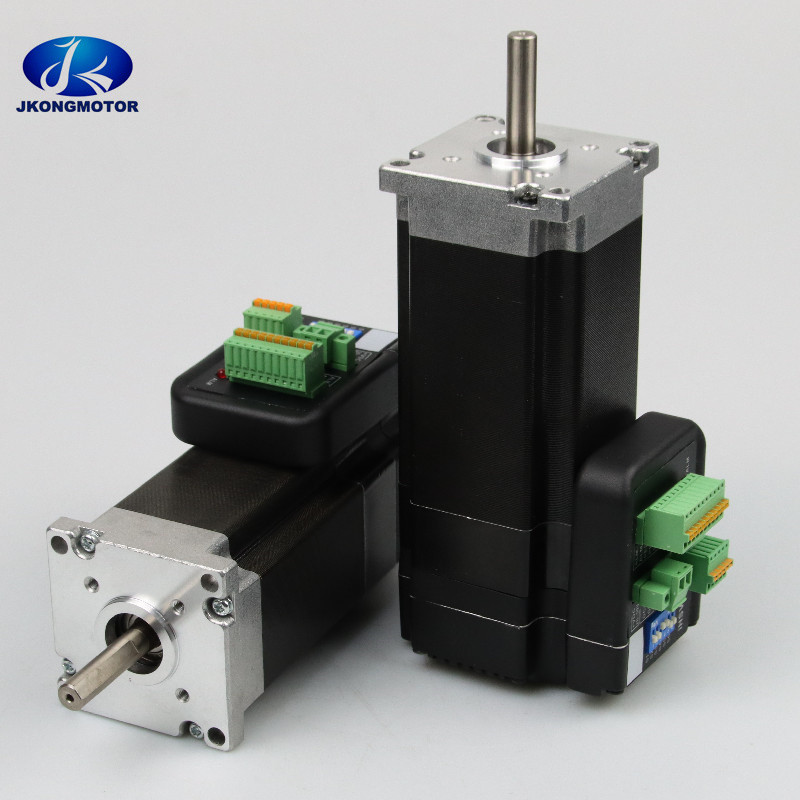

36V 140W Nema23 Integrated Servo Motor IHSV57-30-14-36-01-BY

for eco solvent printer

3000rpm 140W Nema 23 Bldc Motor Hybrid Type 1.8 Degree

item	value
Warranty	1 YEAR
Place of Origin	China
Brand Name	Jkongmotor
Model Number	IHSV57-30-14-36-01-BY
Phase	3
Type	Hybrid
Current / Phase	5.4A
Product name	Nema 23 Closed Loop Stepper Motor
Step angle	1.8 degree
Motor length	127.5mm
Resistance	0.78Ω
Inductance	0.84mH
Holding torque	0.45N.m
Number of leads	4

Closed Loop Servo Stepper Motor / Easy Servo Stepper Motor Series
Motor series	Phase No.	Step angle	Leads No.	Motor size	Holding Torque
Nema 23	2 phase	1.8 degree	4	57x57mm	1.8	N.m
Nema 23	2 phase	1.8 degree	4	57x57mm	2.2	N.m
Nema 23	2 phase	1.8 degree	4	57x57mm	3.1	N.m
Nema 24	2 phase	1.8 degree	4	60x60mm	3.1	N.m
Nema 24	2 phase	1.8 degree	4	60x60mm	4	N.m
Nema 34	2 phase	1.8 degree	4	86x86mm	4.5	N.m
Nema 34	3 phase	1.8 degree	4	86x86mm	8.5	N.m
Nema 34	2 phase	1.8 degree	4	86x86mm	12	N.m
Nema 42	2 phase	1.2 degree	4	110x110mm	20	N.m
Nema 52	3 phase	1.2 degree	4	130x130mm	30	N.m
Above only for representative products, products of special request can be made according to the customer request.

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.

 We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.

 Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.

 We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.

Product Tags:

140W nema 23 bldc motor

3000rpm nema 23 bldc motor

D shaft Closed Loop bldc Motor
