2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver

Brand Name : Jkongmotor

Model Number : JK57HSN30

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$55.5~US$73.5/pcs

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Type : NEMA23 Closed loop Servo Motor

Phase : 2

No. of Leads : 4

Voltage : 3.78V

Current : 4.2A

Holding Torque : 3N.m

Step Angle : 1.8 Degree

Motor Diameter : 57mm

Motor length : 134mm

Typical applications : CNC machine, Robot

Contact Now

1) Product Description

3N.m Nema23 Closed loop Motor + driver full kit

1) Product Name: 3N.m Nema23 Closed loop servo stepper motor
Model: JK57HSN30
Number of Phase: 2
Step Angle: 1.8 Degree
No. of Leads: 4
Rated Voltage: 3.78V
Rated Current: 4.2 Amps
Holding Torque: 3N.m
Motor Diameter: 57mm
Motor length:134mm
Shaft Length: 21mm
Shaft Diameter: 7.5mm

2) Product Name: 3N.m Nema23 Closed loop servo stepper driver
Model:JK-HSD57
Voltage Range: 24-80VDC
Microstep/pulse: 25600/rev

3)Typical applications: CNC machine, Robot

2) Product Images
2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver
2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver
2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver

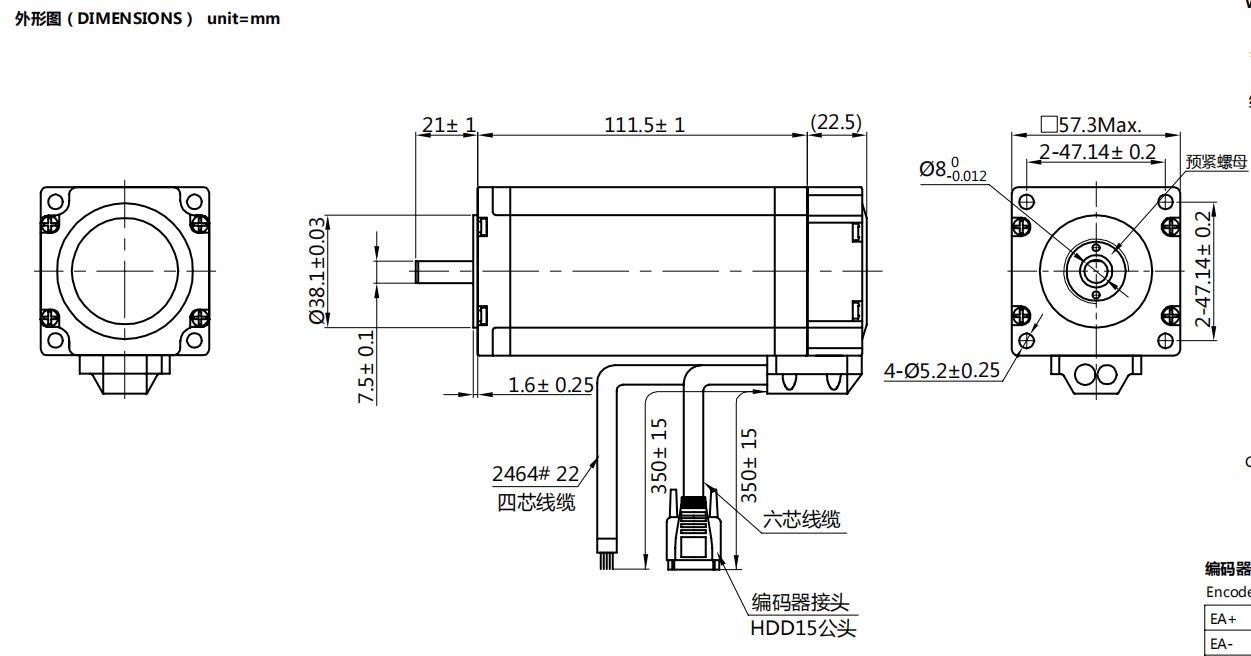

3) Product Drawings
2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver
4) Other Models
Closed Loop Servo Stepper Motor /
Easy Servo Stepper Motor Series
Motor series
Phase No.
Step angle
Leads No.
Motor size
Holding Torque
Nema 23
2 phase
1.8 degree
4
57x57mm
1.8
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
2.2
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
4
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
4.5
N.m
Nema 34
3 phase
1.8 degree
4
86x86mm
8.5
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
12
N.m
Nema 42
2 phase
1.2 degree
4
110x110mm
20
N.m
Nema 52
3 phase
1.2 degree
4
130x130mm
30
N.m
Above only for representative products, products of special request can be made according to the customer request.
