Nema34 6A 78mm-155mm Hybrid Servo Motor With Driver Kit & power supply
Nema34 Servo Motor Features:
- Low heat (static, the current is almost zero, no heat).
- Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).
- pplicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine /placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
- Large torque output in some cases can simplify the complexity of the machine.
Nema34 Servo Motor Driver Parameters:
| Features |
| Input voltage | 24~80VAC/24~110VDC |
| Output current | 2.4~7.2A (PEAK) |
| Pulse frequency | 0~100KHz |
| MicroSteps | 16 MicroSteps |
| Using environment | -5~50℃,avoiddust,high teperatureand corrosive gas |
| Storage environment | -20~+80℃,avoid direct sunlight |
Application:
JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical
devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Electrical Specification of nema 34 closed loop stepper motor:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia |
| | ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm² |
| JK86HSN45 | 1.8 | 78 | 6 | 0.27 | 2 | 4.6 | 4 | 1.2 | 1400 |
| JK86HSN65 | 1.8 | 100 | 6 | 0.27 | 2.2 | 6.8 | 4 | 1.9 | 2200 |
| JK86HSN85 | 1.8 | 115 | 6 | 0.36 | 3.8 | 8.5 | 4 | 2.4 | 2700 |
| JK86HSN120 | 1.8 | 155 | 6 | 0.44 | 3.8 | 12.5 | 4 | 3.6 | 4000 |
| Above only for representative products, products of special request can be made according to the customer request. |
closed loop Stepper motor Driver: JK-HSD86
| Parameter | Min | Typical | Max | Unit |
| Input Voltage (JK-HSD86) | 20 | 36 48 | 50 | VDC |
| Input Voltage (JK-HSD86C) | 24 | 36 48 | 80 | VDC |
| Input Voltage (SC8680C) | 24VAC | 60AC | 80VAC 100VDC | VVDC |
| Output Current | 0.1 | - | 10(Peak) | A |
| Pulse Input Frequency | 0 | - | 200 | kHz |
| Logic Signal Current | 7 | 10 | 16 | mA |
| Isolation Resistance | 500 | - | - | MΩ | |
Suitable Power Supply Parameters:
| Power Supply Model | Input voltage | Ouput voltage | Power | Weight | Size |
| S-300-48 | AC110V/220V | DC48V | 300W | 0.7kg | 215*115*50mm |
| S-1000-48 | AC110V/220V | DC48V | 1000W | 1.5kg | 245*245*65mm |
| S-360-60 | AC110V/220V | DC60V | 360W | 0.7kg | 215*115*50mm |
| S-1200-60 | AC110V/220V | DC60V | 1200W | 1.5kg | 245*245*65mm |
Power Supply Features:
This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.
You may receive:
1. 3Pcs Nema 34 Closed Loop Stepper Motor + 3Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
2. 3Pcs Nema 34 Closed Loop Stepper Motor + 1Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
| No. | Output Voltage | Motor Quantity | Supply Quantity | Driver | Other |
| 1 | 48V | 3pcs closed loop motor | 3pcs ——300W | 3pcs —— JK-HSD86 | board + cable + usb |
| 2 | 48V | 3pcs closed loop motor | 1pcs ——1000W | 3pcs —— JK-HSD86 |
| 3 | 60V | 3pcs closed loop motor | 3pcs ——360W | 3pcs —— JK-HSD86 |
| 4 | 60V | 3pcs closed loop motor | 1pcs ——1200W | 3pcs —— JK-HSD86 |
closed loop stepper motor Drawing:
Details of product:

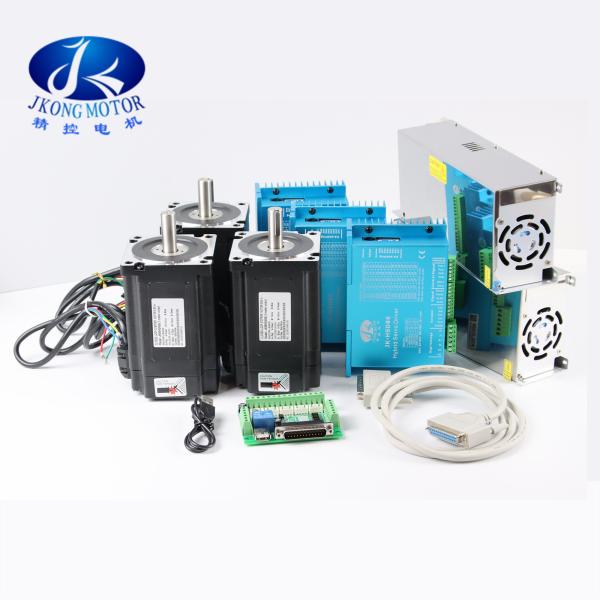

One set includes stepper motor and stepper driver with board + cable + usb with power supply
Our Services:
We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..
Warranty:
- We offer one year warranty.
- Within the warranty period, if your item has any problems when you use it, please send us an e-mail with photos or video to show the problem.
- The replacement of the products for free are considerable due to it's own defects during warranty period.
Product Tags:
|
|
Nema34 Low Heat 6A 155mm Closed Loop Stepper Motor Images
|
