OEM Round 90mm Customized Brushless Dc Motors IP30 protection

Name: OEM Round 90mm Customized Brushless Dc Motors IP30 protection
Brand: Jkongmotor
Price: 49 USD

Quality OEM Round 90mm Customized Brushless Dc Motors IP30 protection wholesale

Brand Name : Jkongmotor

Model Number : JK90BL30-625

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$49~US$80

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Nema : 90mm round bldc motor

Holding Torque : 1N.m

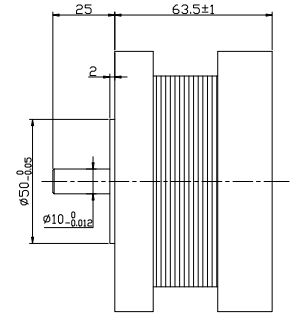

Motor Length : 63.5mm

Number of phase : 3phase

Number of Poles : 8

Rated voltage : 220vac

rated speed : 2500rpm

rated power : 262w

Degree of protection : IP30

Protect Feature : Water proof

MOQ : 10pcs

Contact Now

BLDC motor OEM service Customized Round 90mm brushless dc motors

Product Name: Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 4 Poles /8 Poles /10 Poles
Rated Voltage: 24v /36v /48v /310v
Rated Speed: 3000rpm /4000rpm /or customized
Rated Torque: Customized
Rated Current: Customized
Rated Power: 23w~2500W

1.Production description:

Product Series	Poles No.	Rated Voltage	Rated Speed	Rated Torque	Rated Power	Motor Length
42mm BLDC Motor	8	24v	4000rpm	0.0625~0.25N.m	26~105w	41~100mm
57mm BLDC Motor	4	36v	4000rpm	0.055~0.44N.m	23~184w	37~107mm
60mm BLDC Motor	8	48v	3000rpm	0.3~1.2N.m	94~377w	78~120mm
80mm BLDC Motor	4	48v	3000rpm	0.35~1.4N.m	110~440w	78~138mm
86mm BLDC Motor	8	48v	3000rpm	0.35~2.1N.m	110~660w	71~138.5mm
110mm BLDC Motor	8	310v	3000rpm	1.65~6.6N.m	518~2073w	83~173mm
130mm BLDC Motor	10	310v	3000rpm	2.39~11.94N.m	750~2500w	115~190mm
Above only for representative products, products of special request can be made according to the customer request.

2.Product photos:

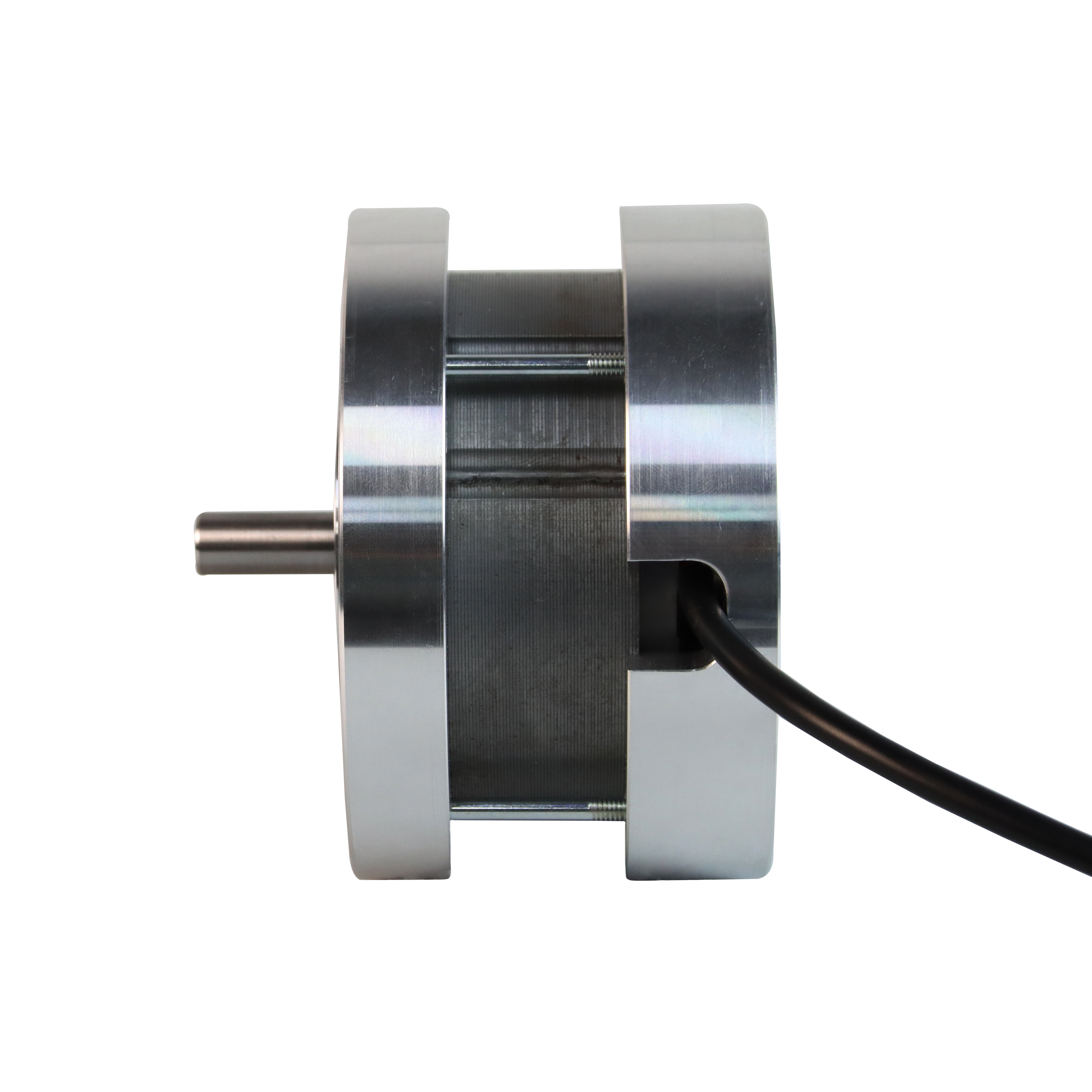

OEM Round 90mm Customized Brushless Dc Motors IP30 protection

FAQ:

Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you

Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.

Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
