- Brushless gear motor , high efficiency and energy saving
- Speed reduction ratio is optional
- The external scheme can be used in bulk sorting and transportation
- The drum motor is customized for the conveying line
- With brushless gear motor, 50 kg load can be easily driven
- Integrated photoelectric input and output ports, easier field wiring
- 15 internal rotating speeds and 7 external rotating speeds
Advantages of BLDC Motors:
A BLDC motor with three coils on the stator will have six electrical wires (two to each coil) extending from these coils. In most implementations three of these wires will be connected internally, with the three remaining wires extending from the motor body (in contrast to the two wires extending from the brushed motor described earlier). Wiring in the BLDC motor case is more complicated than simply connecting the power cell’s positive and negative terminals; we will look more closely at how these motors work in the second session of this series. Below, we conclude by looking at the advantages of by BLDC motors.
Genaral Specification of electric motor:
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 75N ＠20mm form the flange |
| Max.axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |

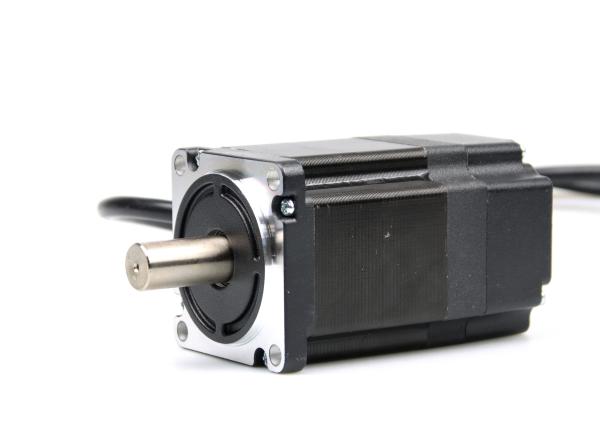

| Specification | Unit | JK60BLS02-02PLF64ED |
| Number Of Phase | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Rated Voltage | VDC | 24 |
| Rated Speed | Rpm | 3000 |
| Rated Torque | N.m | 0.65 |
| Rated Power | W | 204 |
| Back E.M.F | V/Krpm | 6 |
| Torque Constant | N.m/A | 0.06 |
Gearbox Electrical Specification:
| Reduction ratio | 3.6 | 4.3 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 | 154 | 187 | 220 | 260 | 307 | 409 | 514 | 645 |
| Number of geartrains | 1 | 2 | 3 | 4 |
| Transmission efficiency | 90% | 81% | 73% | 66% |
| Rated tolerance torque | 3 N.m | 12 N.m | 24 N.m | 30 N.m |
| Max momentary tolerance torque | 9 N.m | 36 N.m | 72 N.m | 90 N.m |
| Max radial load(12mm form flange) | ≤250N |
| Max shaft axial load | ≤100N |
| L2 length(mm) | 38 | 49.5 | 61 | 72 |
Products of special request can be made according to the customer request !
FAQ(Q=Question, A=Answer)
Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.
Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
