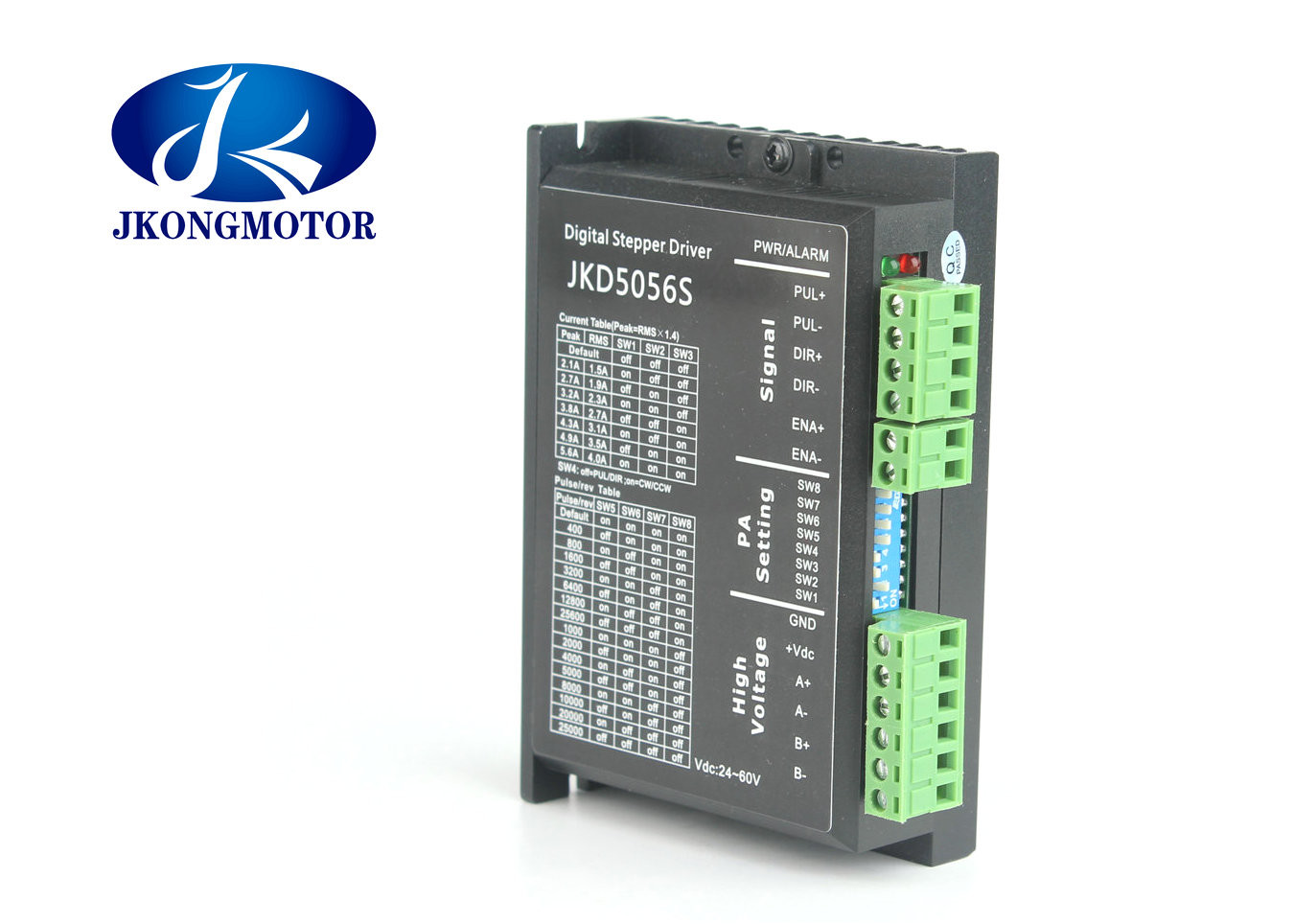

ISO9001 24V-60V 0.1A-5.0A 2 Phase Nema 23 Stepper Motor Driver

  • 1
  • 2
  • 3

Brand Name : Jkongmotor

Model Number : JKD5056S

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$17.5 ~ US$25

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples ,3-7 days / For batch , 10-15days

Packaging Details : with export carton . big quantity with pallet

Model No. : JKD5056S

Supply voltage : 24VDC - 60VDC

current : 0.1A - 5.0A

weight : 280g

Certified : CE ROHS

Matched Motor : Nema23 stepping motor

Motor type : Stepper Motor

Application : Nema23 two phase stepper motors

Contact Now

24V~50VDC 0.1A-5.0A Stepper Motor Driver JKD5056S For Nema23 Stepper Motor

1. Electrical indicators of NEMA23 stepper motor driver

Instruction JKD5056S
Minimum Typical Maximum Unit
The output current 0.1 - 5.0 A
Input voltage 24 36 50 VDC
Control signal input current 6 10 16 mA
Control signal interface level 4.5 5 28 Vdc
Input signal minimum pulse width 1.5 - - us
Stepper pulse frequency 0 - 200 KHz
Insulation resistance 100 MΩ


2. Using environment and parameters of nema23 2phase stepper motor

Cooling method Natural cooling or forced air cooling
Using environment occasion Can not be placed next to other heating equipment, should avoid dust, oil mist, corrosive gas, too big humidity and strong vibration place, prohibit to have combustible gas and conductive dust
temperature -5℃ ～ +50℃
humidity 40 ～ 90%RH
vibration 5.9m/s2MAX
Storage temperature -20℃～80℃
Using altitude Below 1000 metres
Weight About 280 g

3. Mechanical installation diagram
ISO9001 24V-60V 0.1A-5.0A 2 Phase Nema 23 Stepper Motor Driver

ISO9001 24V-60V 0.1A-5.0A 2 Phase Nema 23 Stepper Motor DriverISO9001 24V-60V 0.1A-5.0A 2 Phase Nema 23 Stepper Motor DriverISO9001 24V-60V 0.1A-5.0A 2 Phase Nema 23 Stepper Motor Driver

Interface description


1) Control signal interface circuit

Name Function
PUL+ Pulse signal: pulse rising edge is effective; In PUL high level,voltage is 4.5 ~ 28Vdc, and the low level, voltage is 0 ~ 0.5v. In order to reliably respond to the pulse signal, the pulse width should be greater than 1.5μs
PUL-
DIR+ Direction signal: high/low level signal, to ensure reliable commutation of motor, directional signal should be established before the pulse signal at least 2μs. The initial direction of the motor is connect to motor wiring, change winding (e.g., A +, A - exchange) can change the direction of the motor running, In DIR high level,the voltage is 4.5 ~ 28 VDC,in low level,voltage is 0 ~ 0.5 V.
DIR-
ENA+ Enable signal: this input signal is used to enable or prohibit. ENA+ connect 4.5 ~ 28Vdc, ENA- connect low level (or internal optical coupling), the actuator will cut off the electrical current to keep the motor in a free state and the stepper pulse is not responsive. When this function is not required, the enable signal can be suspended.
ENA-


2) High voltage interface

Name Function
GND DC power grounding
+Vdc DC power positive, dc 20~50 VDC, recommended for 36Vdc.
A+,A- Motor A phase coil interface
B+,B- Motor B phase coil interface


3) Status indication


Green LED is the power indicator, when the driver connect to the power supply, the LED is light; When the driver cuts off the power, the LED is off. The red LED is the fault indicator, and when there is a failure, the indicator will blink in a cycle of three seconds. Red LED is off when the fault is removed by the user. Red LED flashing times in 3 seconds representing different fault information.
